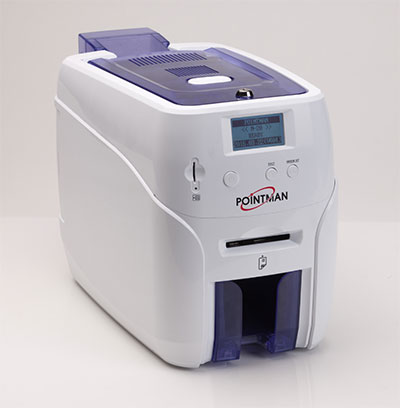

Card Printer N30 / N20
ㆍ
ㆍ
ㆍ
ㆍIdeal printer for ID badges, Membership cards
and Banks cards
Single / Dual sided printer
Flexible feeding options
Small foot print & Light weight Secure Mag.Stripe
Encoding, Contact & Contactless smart Card
Encoding Rewrite function
Features
ㆍ
ㆍ
ㆍ
ㆍ
Dual hopper
High Security: Kensington® physical lock,
Multiple Enclosures locks
Compact design, light weight
WIFI option & Mobile applicatio
Options
ㆍ
ㆍ
ㆍ
ㆍ
ㆍ
ㆍ
ㆍ
ㆍ
ㆍ
Dual-sided printing
Dual hoppers
Magnetic stripe encoding(ISO or JIS2)
Contact Smart card(ISO7816, EMV)
Contactless smart card(Mifare, ISO14443A&B, etc)
Printer hopper lock
Printer Lid lock
Printer hopper lock
Wi-Fi(User upgradable)
Specifications
PrintPrint TechnologyDirect-to-card Dye-sublimation / Resin thermal transfer
Print CapabilitiesSingle or Dual Sided, edge-to-edge printing
Additional hopper for the 2nd type of cards or the extended
Full-color and monochrome printing capability
Alphanumeric text, logos and digitized signatures
Print Resolution300 dpi (11.8 dpm), 16.7 Million Color
Print SpeedFull-color Printing
Single Side (YMCKO) 180 ~ 200 card/hour.
Dual Side (YMCKOK) 140 card/hour.
Dual Side (YMCKO) 95 cards /hour.
Monochrome up to 600 cards/hr.
CardAutomatic Feed : 100-card input (0.76mm) -up to 200 cards with dual
hopper option
Output hopper: 50-60 cards (0.76mm)
Manual Single Feed : 1 card input
Printer Encoding OptionMagnetic Stripe EncodingISO7811 (Track 1,2,3), Coercivity : HiCo/LoCo JIS II
Smart Card
PersonalizationISO7816, EMV Level 1(PC/SC or Serial)
RF ID CardMifare, ISO 14443 A / B, Desfire, NFC, Felica (PC/SC or Serial)
SAMPLCC 1 (Extra-2 Sockets), SIM 4 sockets
Mobile Chip CardISO 7816
Printer
SpecificationsDimensionsN20/N30 : 366(L) × 184 (W) × 228 (H)mm
WeightN20/N30 : 4.5kg
Power100-240V ~ 50/60Hz 1.7A / Output : DC24V 2.5A
FontTrue Type Fonts via Window Drivers
Memory128MB RAM
InterfaceUSB2.0 (High-Speed), RS-232, Built in 10/100 Ethernet
Operation System for
Printer DriverWindows Vista, Windows 7 & 8 & 10 Windows 2003/2008 server
ApprovalsFCC Class A, CE (EN 55022 Class A, EN 55024), CCC, KCC Energy STAR
EAC RoHS
SECURITYKensington ® physical lock slot Hopper lock (N20/N30) - optional
Top cover lock (ribbon lock) - optional
SoftwareCard Designer 2.0™ for Easy Printing
Limited WarrantyPrinter - 2 years Printer Head - 2 years
