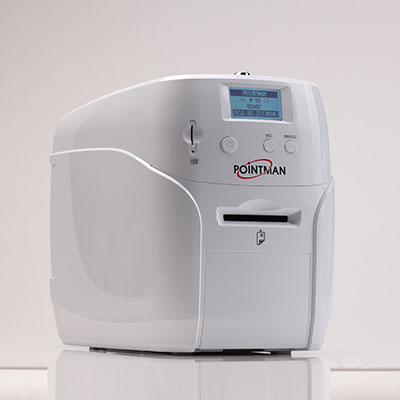

Card Printer N10
ㆍ
Entry printer for ID badges, Bank card
Small foot print & Light weight
Secure Mag.Stripe Encoding
Contact & Contactless smart Card Encoding
Rewrite function
Features
ㆍ
Individual manual card slot for reprinting
Compact design, light weight
High Security: Kensington® physical lock,
Top cover locks
WIFI option & Mobile application
Options
ㆍ
Magnetic stripe encoding(ISO or JIS2)
Contact smart card(ISO 7816, EMV)
Contactless smart card(Mifare, ISO 4443A&B, etc)
Wi-Fi(User upgradable)
Printer Lid lock
Specifications
PrintPrint TechnologyDirect-to-card Dye-sublimation / Resin thermal transfer
Print CapabilitiesSingle sided, manual card feeding & card eject
Full-color and monochrome printing capability
Alphanumeric text, logos and digitized signatures
Print Resolution300 dpi (11.8 dpm), 16.7 Million Color
Print Speed*Full-color Printing
Single Side (YMCO) 180 ~ 200 card/hour.
Monochrome up to 600 cards/hr.
CardPVC and composite PVC Cards
Card Thickness: 0.4mm~1.2mm card,
Card format: ISO CR80-ISO7810(53.98mm x 85.60mm)
Manual Single Feed : 1 card input
Printer Encoding OptionMagnetic Stripe EncodingISO7811 (Track 1,2,3), Coercivity : HiCo/LoCo JIS II
Smart Card
PersonalizationISO7816, EMV Level 1(PC/SC or Serial)
RF ID CardMifare, ISO 14443 A / B, Desfire, NFC, Felica (PC/SC or Serial)
SAMPLCC 1 (Extra-2 Sockets), SIM 4 sockets
Mobile Chip CardISO 7816
Printer
SpecificationsDimensionsN10 : 305.6 (L) × 184 (W) × 228 (H)mm
WeightN10 : 3.7kg
Power100-240V ~ 50/60Hz 1.7A / Output : DC24V 2.5A
FontTrue Type Fonts via Window Drivers
Memory128MB RAM
InterfaceUSB2.0 (High-Speed), Built in 10/100 Ethernet
Operation System for
Printer DriverWindows Vista, Windows 7 & 8 & 10 Windows 2003/2008 server
2012 server
ApprovalsFCC Class A, CE (EN 55022 Class A, EN 55024), CCC, KCC Energy STAR
RoHS
SECURITYKensington ® physical lock slot Hopper lock (N20/N30) - optional
Top cover lock (ribbon lock) - optional
SoftwareCard Designer 2.0™ for Easy Printing
Limited WarrantyPrinter - 2 years Printer Head - 2 years
*Under specific condition
