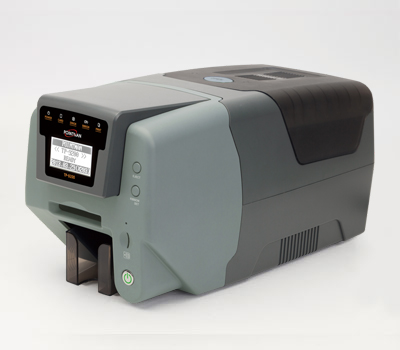

TP-9200 Card Printer

  • TP-9200 Card Printer

TP-9200 Card Printer

TP-9200

Card Printer
ㆍ
Easy to Print Photo ID Card
Reliable to Encode Mag. Stripe/IC/RF Card
Flexible Card Printer for the Daily Card Printing
Features
ㆍ
Color & Monochrome printing
Individual card slot for reprinting
Easy to exchange ribbon & TPH
Design software ‘TheDesigner’
Video CD & Maintenance Manual
RFID ribbon protection
Strong encoding based on long banking
experience.
Options
ㆍ
Magnetic stripe encoder (4 Million passes)
Contact Smart Card encoder (1 Million contacts)
Contactless Smart Card encoder
Flipper module for Dual side printing
Ethernet (10/100 Mbps)
Specifications
PrintPrint TechnologyDirect-to-card Dye-sublimation / Resin thermal transfer
Print CapabilitiesOne or Two Sided, edge-to-edge printing
Full-color and monochrome printing capability
Alphanumeric text, logos and digitized signatures
Print Resolution300 dpi (11.8 dpm), 16.7 Million Color
Print Speed
"Under specific condition"Full-color Printing
Single Side (YMCO) - up to 200 card/hr.
Single Side (YMCKO) - up to 170 card/hr.
Dual Side (YMCKO-K) - up to 155 cards /hr.
Monochrome up to 550 cards/hr.
Card CapacityAutomatic Feed : 100-card input for 0.4mm ~1.2mm cards
70-card output standard
Manual Single Feed : 1-card input
Printer OptionMagnetic Stripe EncodingISO7811 (Track 1,2,3), Coercivity : HiCo/LoCo
Smart Card
PersonalizationISO, EMV - Contact Landing Type
RF ID CardMifare, ISO 14443 A / B, ISO15693
SAMPLCC 1 (Extra-2 Sockets), SIM 4 sockets
Mobile Chip CardISO 7816
Printer
SpecificationsDimensionsSingle : 403(L) × 192 (W) × 202 (H)mm
Dual : 471(L) × 192 (W) × 202 (H)mm
WeightSingle : 5.5kg / Dual : 6.5kg
Power100-240V ~ 50/60Hz 1.7A / Output : DC24V 3.75A
FontTrue Type Fonts via Window Drivers
Memory128MB RAM
InterfaceUSB2.0 (High-Speed), RS-232, Built in 10/100 Ethernet
Operation System for
Printer DriverAll 32-bit, 64 bit compatible: Windows 8, Windows 7, Windows Vista, XP,
Windows 2008 Server, Windows 2003 Server,
ApprovalsFCC Class A, CE (EN 55022 Class A, EN 55024), CCC, KCC
Software
Card Designer™
