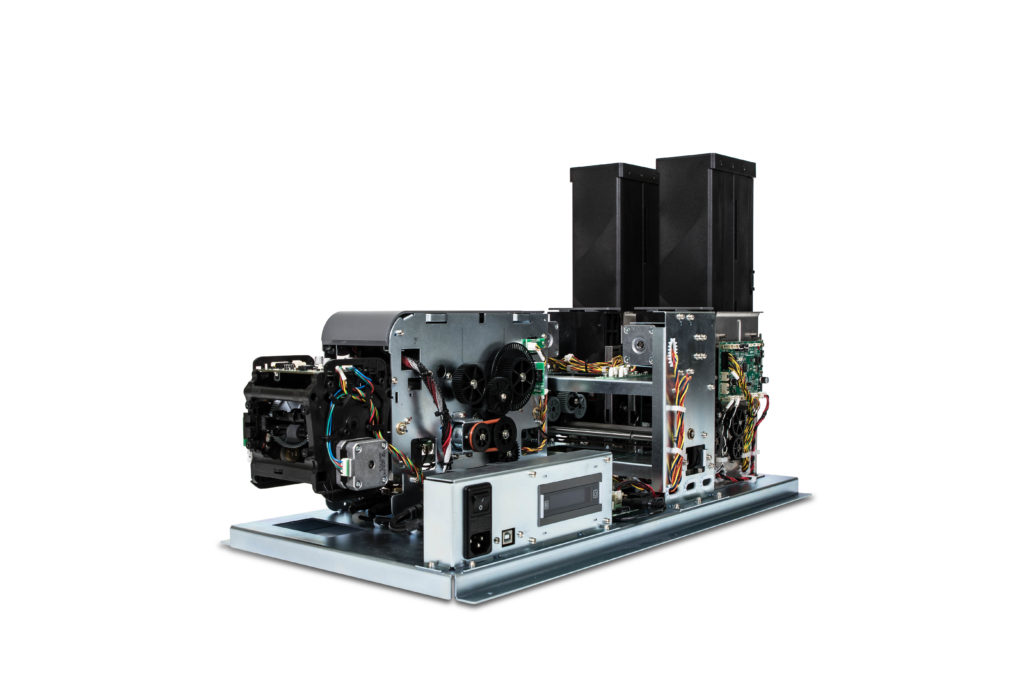

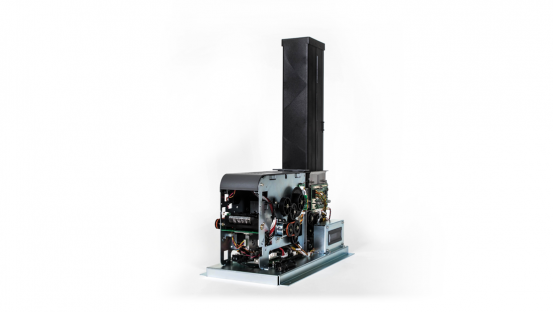

SMART-51K Features
Single or Dual-sided Card Printing
Up to 4 Selectable Hoppers
300 or 500 Card Refillable Cartridges
Up to 212 cards/hour (YMCKO)
Installable MS, Contact & Contactless Encoder
Compact and Reliable design
Customizable bottom plate
(Size, Layout of Control Panel & Adaptor, etc.)
SMART-51SK : Single sided ID Card Printer
SMART-51DK : Dual sided ID Card Printer
SMART-51K Specifications
Printing
Print Mode
Single or Dual Sided
Print Type
Direct Dye-Sublimation
Print Area
Edge to Edge
Resolution
300 dpi
Card
Card Feeding
Automatic or Hopper Selectable
Card Size
ISO CR80 or ISO CR79 (Option-Factory installed)
Card Thickness
0.38mm (15mil) ~ 1.0mm (40mil)
Card Type
PVC, PET, Composite PVC
Print Speed
Monochrome
5 sec/card (720 cards/hour)
YMCKO
Max. 17 sec/card (212 cards/hour)
YMCKOK
Max. 22 sec/card (164 cards/hour)
Capacity
Input Card Hopper
1 to 4 Hopper system Selectable
Output Card Hopper
300 or 500 card selectable refillable cartridges
System
Interface
2 Line LCD / 2 LED Buttons
Supported Platforms
Microsoft Windows 7/8/10
Communication
USB, Ethernet (Option)
Power Supply
Free Voltage (AC100/220V, 50~60Hz)
Humidity
35~70%
Temperature
15~35℃
Encoding Option
Magnetic
ISO 7811 (Track I, II, III Read/Write, HiCo/LoCo), JIS II
Contact
ISO 7816 A/B/C Card, ISO 7816 1/2/3/4 Microprocessor Card
Contactless
ISO 14443 (Type A/B), MIFARE, DESFIRE, iCLASS, ISO 18092(NFC), Felica
